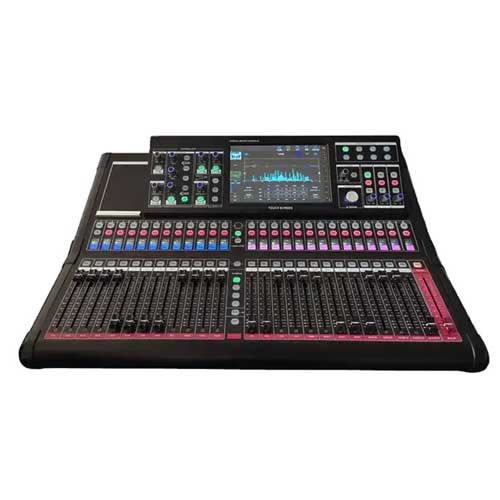

Mixer Digital Kasen T-24 PLUS

Mixer Digital Kasen T-24 PLUS: Specifications

• Front:

Input channel gain / + 48V switch
EQ / Equalizer
HPF Channel
LPF (High and Low Pass Filter)
AUX channel signal distribution button
10.1-inch high-resolution capacitive touch screen
Eight user-defined buttons
Contact microphone function button (TALK BACK)
Stereo input control zone 1/2 (ST1 / ST2)
digital input channels (MP3 / sound card control / AES input)
Multi-function knob
Connect the remote network extension button Expand
Enter the page rotate button
GEQ mode button
Push right
Quickly call up the first four scene modes / DCA Swamp Settings / TAP effect beat button
Push input channel
PFL screen switch
Small screen channel guide
Mute switch
Lock select SELChannel
DCASend button
FXChannel signal distribution node
GATE / Door noise
COMPUTER / Pressure limiting device

• Backside:

Headphone jack/with monitoring knob
Network expansion interface
AES digital signal input/output interface
LAMP-12V output interface, can be connected to the same voltage of gooseneck lamp.
INTERMEDIATE input interface
3.5 Stereo headphone input interface
Square USB interface
USB interface
RS232 interface for central control
Network interface
Two cooling fans
Port and power switch
effects switch jack
Main output LR output interface (balanced and unbalanced)
AUX1-14 auxiliary output interface
two ST stereo inputs
MIC/LINE microphone input interface

• Net dimensions: 746 x 509 x 248mm
• Net weight: 15.6kg
• Total weight: 18.9kg
• Packaging size: 900 x 610 x 340mm
