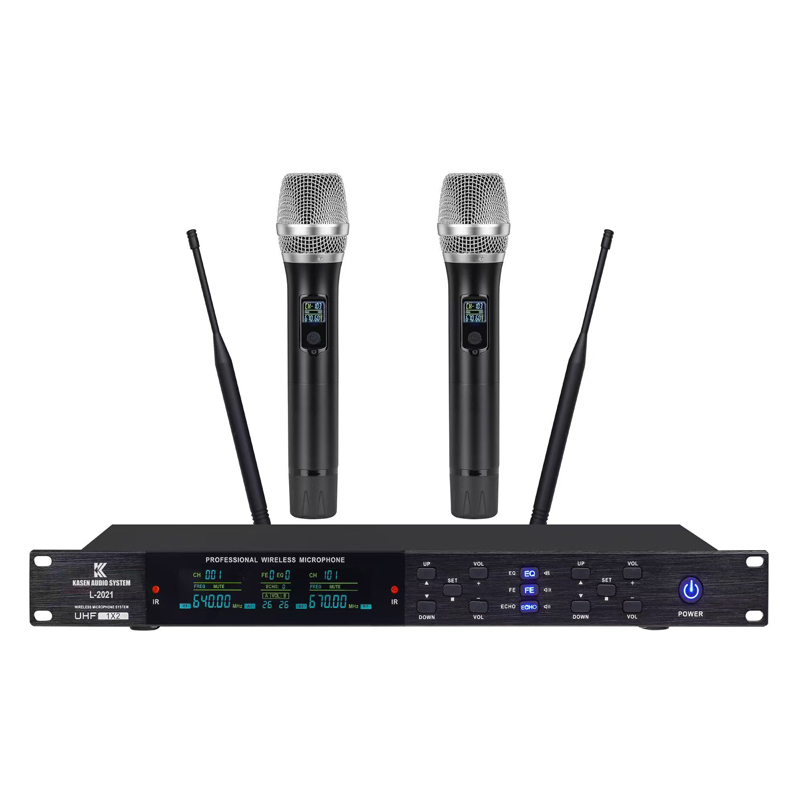

Kasen L-2021 Wireless Microphone

Kasen L-2021 Wireless Microphone: Specifications

Đây là bản dịch tiếng Anh chuyên nghiệp cho bảng thông số kỹ thuật của bạn, sử dụng các thuật ngữ kỹ thuật chuẩn trong ngành âm thanh:

Technical Specifications

1. Receiver

• Frequency Range: 500MHz or 600MHz (Optional)

  • Band 1: UHF 580.000 – 639.700 MHz

  • Band 2: UHF 640.000 – 699.700 MHz

• Total Channels: 400 CH
• Front Panel Controls: EQ, Fe (Feedback), Echo, Set (x2), Up/Down (x2), Vol +/- (x2)
• Rear Panel Description: 600MHz-500MHz toggle switch, 2 x Antenna ports, 1 x 6.3mm Output Jack, 2 x XLR (Canon) Output Jacks
• Channel Spacing: 300 KHz
• Bandwidth: 120 MHz
• S/N Ratio: > 96 dB
• Frequency Stability: ± 5 KHz
• Receiving Sensitivity: < -96 dBm
• LCD Display: Channel, Frequency, EQ, Echo, FE
• Power Supply: DC 12V, 1000mA
• Output Jacks: 1 x 6.3mm TS, 2 x XLR Balanced
• Operating Range: Up to 50m (line of sight/obstacle-free)
• Included Accessories: 2 Antennas, 1 Power Adapter

2. Handheld Microphone

• Frequency Range: 500MHz + 600MHz (Dual Band), (580.000 – 639.700 MHz & 640.000 – 699.700 MHz)
• RF Power Output: 10 mW
• Audio Frequency Response: 40 Hz – 18 KHz
• Total Channels: 400 CH
• Channel Spacing: 300 KHz
• Frequency Stability: ± 5 KHz
• Display: LCD (Frequency and Battery Level indicator)
• Battery: 2 x AA batteries (1.5V)
